Techsew 4800 PRO Cylinder Walking Foot Industrial Sewing Machine

The Techsew 4800 PRO is designed for sewing a broad range of leather goods including bags, belts, wallets, upholstery, saddle bags, satchels and more. It is also suitable for sewing vinyl, nylon webbing, canvas, denim, heavy fabrics and synthetic materials.

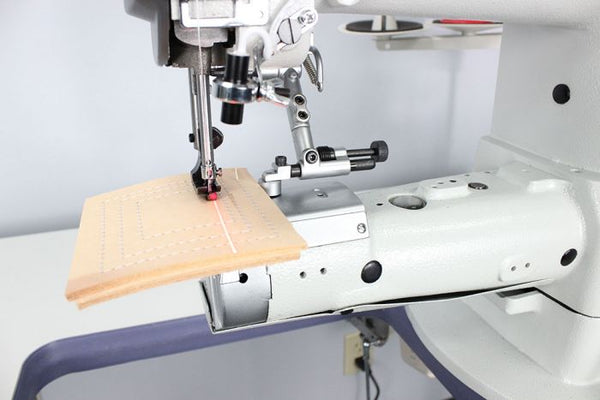

Cylinder arm sewing machines are great for sewing into hard to reach areas, corners, gussets or sewing cylindrical products such as leather bags. The open sewing area around the cylinder arm makes it easy to turn and maneuver the product being sewn without having to fold or roll the product.

The 4800 PRO features the latest in sewing technology, including automatic needle position system, laser guide and more.

With its higher presser foot clearance, newly adopted dual-tension control, adjustable presser foot climbing mechanism and larger thread size capability, the 4800 PRO offers increased work efficiency and the highest stitch quality.

APPLICATIONS:

• Light to heavy-weight leather (1-2oz to ½” maximum thickness)

• Light to medium weight nylon webbing

• Medium to heavy weight canvas, denim, fabrics, synthetic materials

FEATURES:

• Compound walking foot feeding mechanism

• Large extra-capacity hook (M-style bobbin)

• Dual-tension control for more precise thread tension

• Adjustable presser foot climbing mechanism helps maintain consistent stitch length on uneven materials

• Includes variable speed SmartServo motor and speed reducer pulley for stitch by stitch control of sewing speed

• Drop-in bobbin system for easy access to the bobbin

• Reverse feed to reinforce stitches

• Integrated bobbin winder

• Knee lifter to raise the presser foot

• Safety clutch

• Includes Reinforced U-table, motor, tools, LED lamp, instruction manual, accessories

• Limited Lifetime Warranty included

• Individually inspected and sewn-on prior to shipping

PRO PACKAGE INCLUDES:

• Automatic Needle Position System – designed for improved efficiency, the SmartServo-NP motor will automatically stop the needle in the down position when the operation pedal is released, thus allowing the operator to more easily turn the product to sew a 90-degree corner

• Laser Guide – the laser line facilitates the sewing of straight lines and aligning rows of stitches

• Swing Down Roller Edge Guide – adjustable and easy to swing up and out of the way, the roller edge guide helps to feed the material in a straight line thus improving stitch accuracy

• Aluminum Flatbed Table Attachment – our newly developed flatbed attachment fits directly over the cylinder arm, converting it to a flatbed machine to facilitate sewing of flat products such as wallets and belts. Installs easily in seconds. Included with orders placed after 3/14/22.

• Speed Reducer Pulley – The speed reducer pulley is installed in combination with the variable speed Servo motor, further reducing the sewing speed from a minimum of approximately 2 stitches per second to less than 1 stitch per second

• Accessories Package – an accessories package comprising of 1 spool of size #69 bonded nylon sewing thread, 3 packages of needles (various sizes), 8 bobbins and left toe zipper foot will be included

WHAT'S INCLUDED?

SPECIFICATIONS:
